Detalhes do produto:
|
The Neopower MC4 One-in-Three Plug and Socket connectors are engineered for efficient three-way parallel connections in solar panel and photovoltaic systems. Featuring IP67 waterproof protection, these connectors deliver reliable performance in outdoor and challenging environments, shielding against dust, moisture, and extreme weather. Constructed with tin-plated brass contacts, they provide excellent conductivity, corrosion resistance, and minimal power loss. The durable PPO housing withstands high temperatures ranging from -40°C to 90°C, ensuring long-term stability in demanding installations. Rated for DC 1000V and current capacities of 34A for the plug and 30A for the socket, these MC4 branch connectors are ideal for energy storage systems, inverters, and large-scale solar arrays. Their compact, lightweight design simplifies installation, while a lifespan of up to 3000 mating cycles guarantees dependable operation. Perfect for expanding PV arrays without compromising efficiency, the Neopower MC4 One-in-Three series is the trusted solution for professional solar projects.
| Specification | Details |
|---|---|
| Rated Current | Plug: 34A / Socket: 30A |
| Rated Voltage | DC 1000V |
| Insulation Resistance | 0.5MΩ MIN |
| Test Voltage | DC 6000V |
| Housing Material | PPO |
| Surface Coating | Tin plating |
| Hardware Materials | Brass |
| Waterproof Grade | IP67 |
| Operating Temp | -40°C ~ 90°C |
| Salt Spray Resistance | 48h |
| Fire Degree | UL94-V0 |
| Mating Cycles | 3000 |

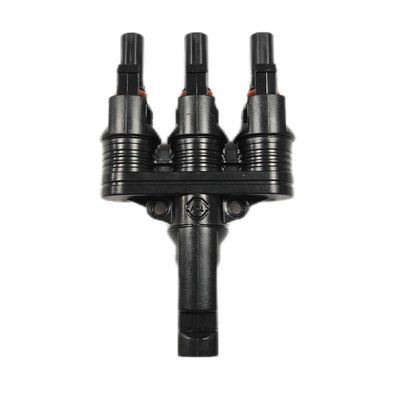

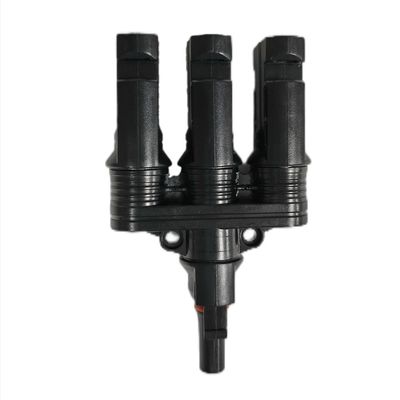

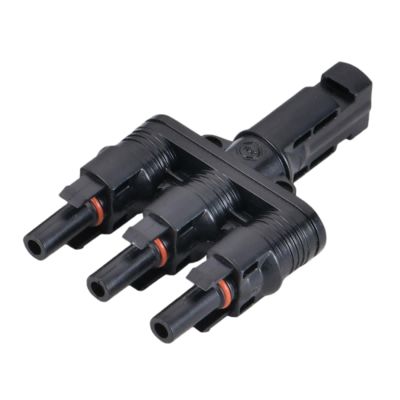

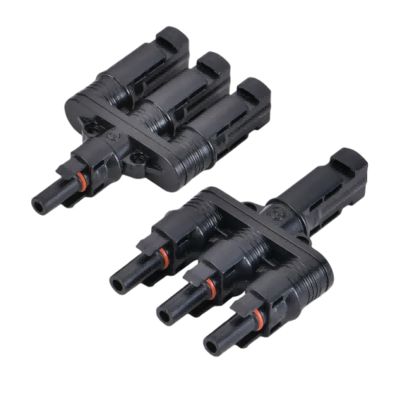

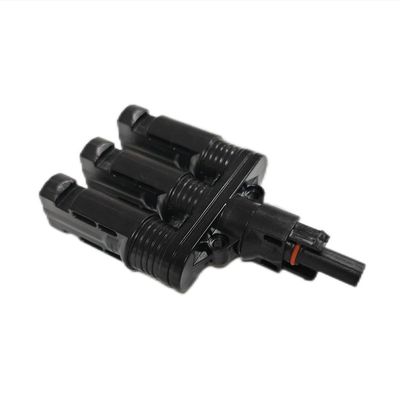

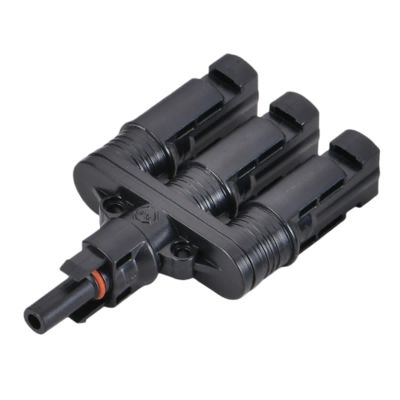

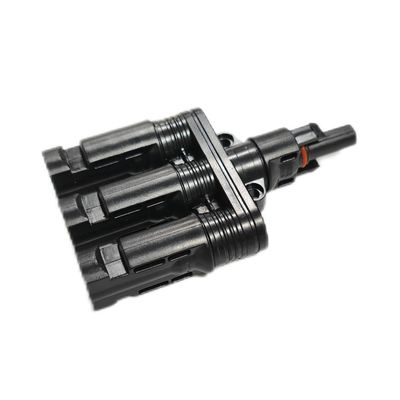

Product Pictures:
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
